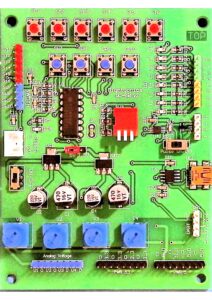

uC Aid – Easy Interface board for any microcontroller

Description

uC-Aid is a microcontroller interface module board. It provides invaluable functions to any logic ics, microcontroller, Arduino board design, Logic ics etc.. It includes switches, led’s, variable analog voltage, pulse output, and a uart. It also provides 4 channel 3.3V and 5V power. The module has to be provided with input power (9V-12V). All functionality provided will be a 5V or 3.3V compatible selectable by jumper. It can also be used in digital electronic circuits.

SPECIFICATIONS

POWER

Input Supply : 9V – 12V (can run on batteries).
Ouput Supply : 3.3V (4 Channel) & 5.0V (4 Channel).
Module operating voltage : Selectable 3.3V/ 5.0V Power.
Provided On/Off Power Switch.

SWITCHES

St1-St5 : Switches with debounced output.
SW7-SW10 : Undebounced Switches.

LED

L1-L4 : Active High Led.
L5-L8 : Active Low Led.

VARIABLE ANALOG VOLTAGE

V1-V4 : 0-3.3V / 0-5V.

PULSE OUTPUT

Channel 1 : 32.768Khz – 4.194304Mhz (8 steps).
Channel 2 : 1Hz – 128 Hz (8 steps).

USB TO UART(TTL)
Communication to PC by UART.
